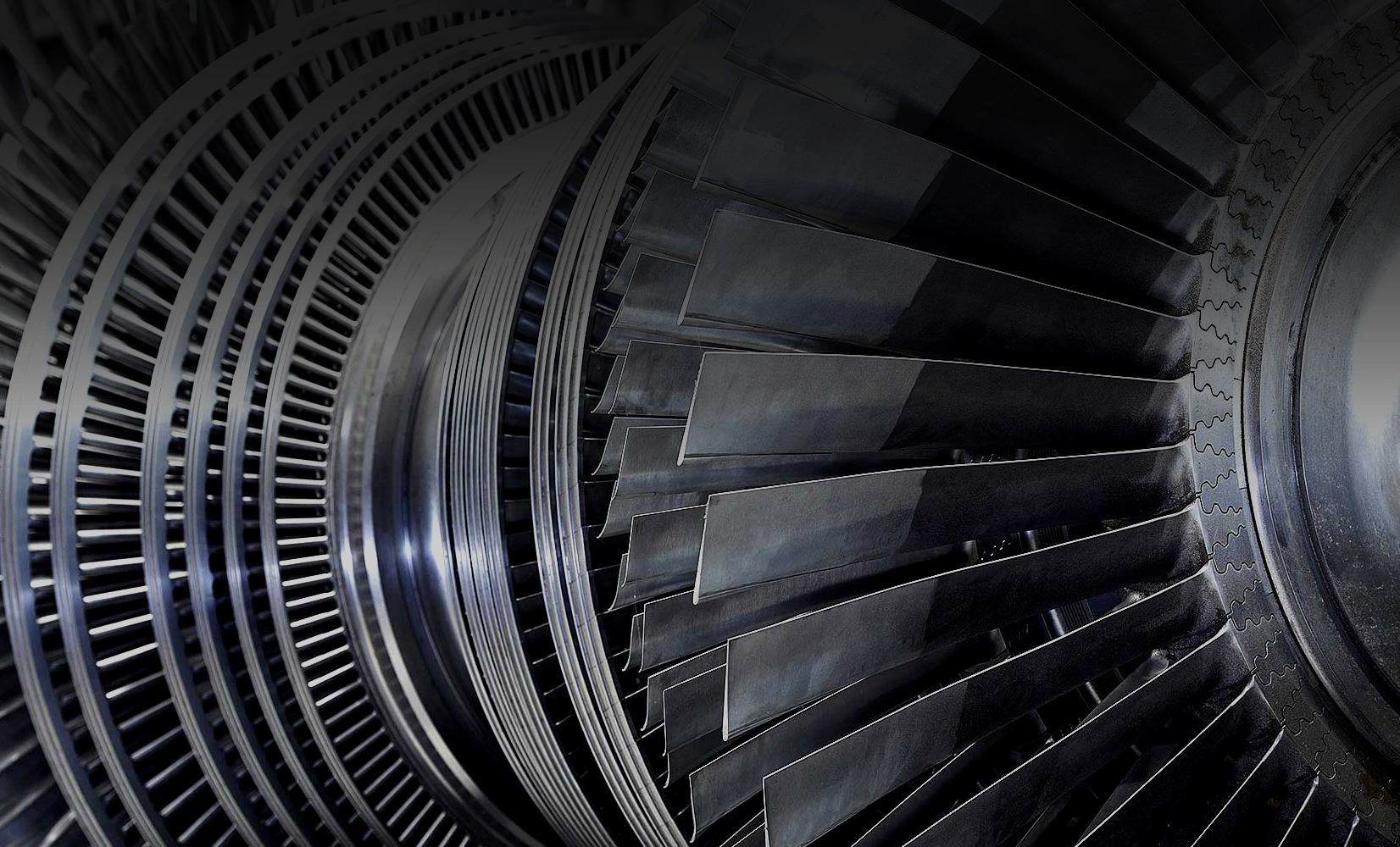

Power plant (Thermoeletric, Nuclear, Hydroelectric, Wind power): Our NDT solution offers inspection of nuclear fuel rod, casting, turbine
blade, reactor vessel head and weld joint of pipe.
In addition, we serve ISI(In Service Inspection) and PSI(Pre Service
Inspection) to make perfect NDT inspection.

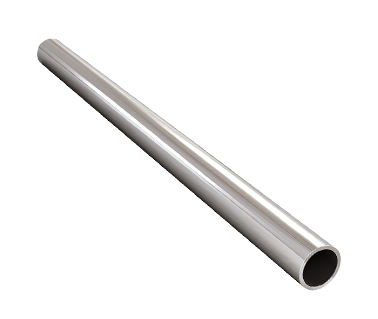

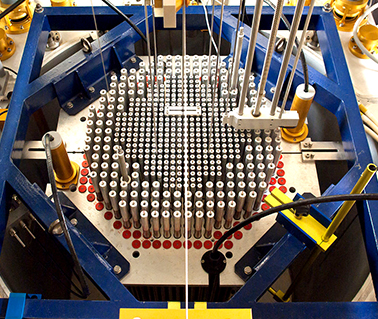

Inspection of nuclear fuel rod: In case of nuclear fuel rod(Dia. 9.0mm / Thickness: 0.5mm),
Defect and Thickness is too small to find using conventional probes.
Therefore, we have special probes(30MHz ~) and high-end pulser supported high capacity and fast sampling.

Support available inspection of size: Min. 0.01mm depth of defect

Features: Lion UT solution offers the newest H/W and S/W powerfully in circumstances

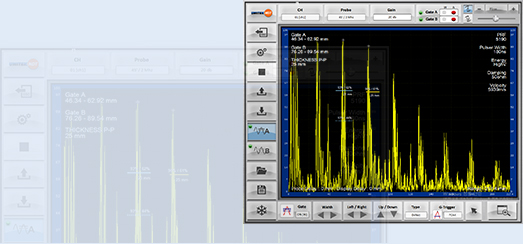

A-Scan
- Real-time A-Scan
- Various inspection setting
- Zoom of specific part
- Customized color of pulse echo

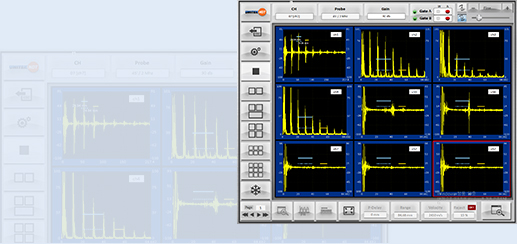

Multi A-Scan
- Max 9 channel A-scan in a screen
- Easy to adjust screen splitting
- Easy-to-use UI
- Hot key to switch each channel screen

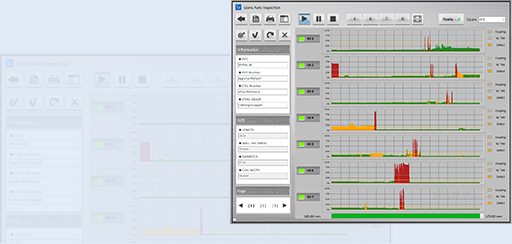

Auto inspection
- One-click inspection
- Real-time strip chart
- Monitoring of all channels simultaneously
- Peak of echo checking system.

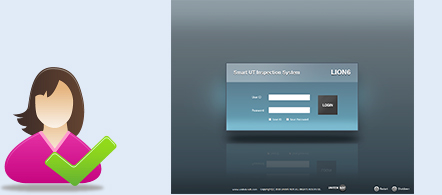

Login
- Simple design to use easily
- Management of login
- Measurement of authority of each user level

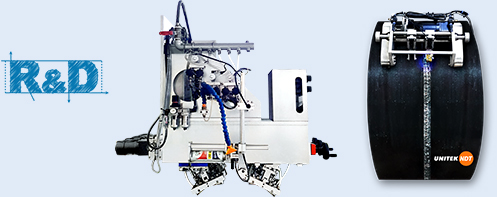

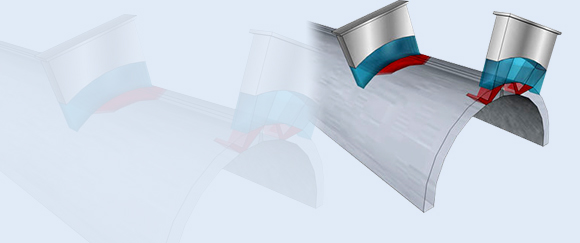

UT Array
- Manufacturing of UT probe holder for test in all environment
- Design for UT probes for appropriate inspection
- JIG array including smart motion control.

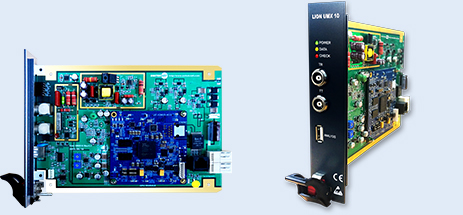

Pulser
- High performance pulser and receiver
- Coupling mode
- Dual mode
- Gigabit ethernet
- LED indicator

Probe
- Frequency : 0.5Mhz ~ 200Mhz
- Types : Linear(Small, Medium, Large), Immersion , Wedge Integrated, Delay, Protected Face, High Frequency, Angle Beam, Contact, Dual Element, Shear Wave

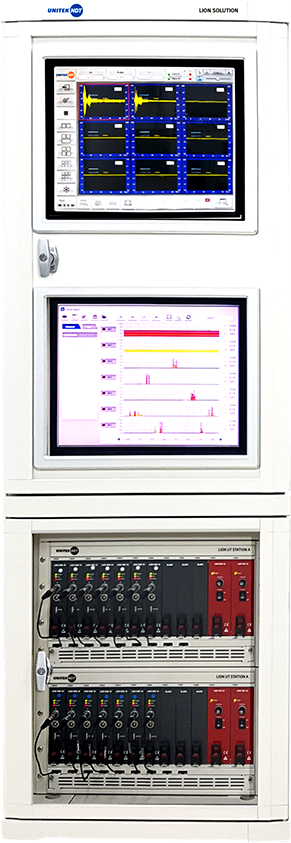

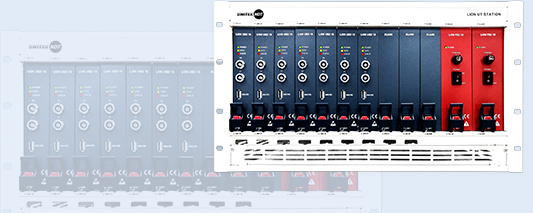

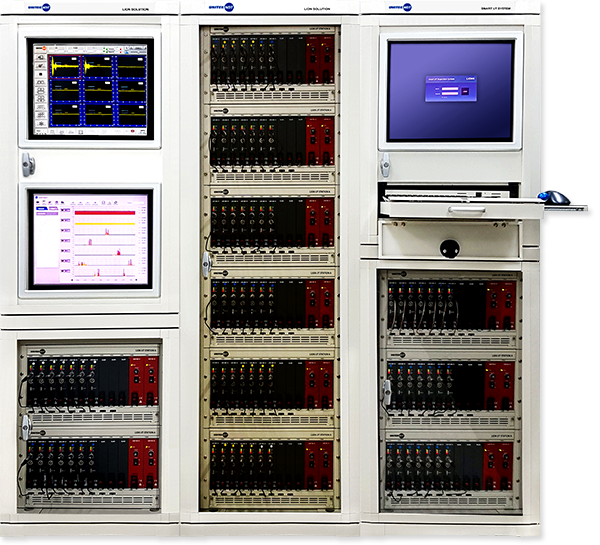

UT Station
- All UT pulser cards are mounted on UT Station for stable connection and power supply.
- UT station based aluminum frame is designed to prevent shock and vibration.
Pulser

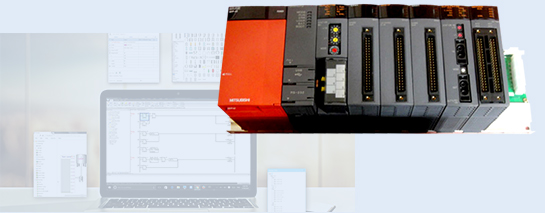

- Compatible with various PLC (SIMENS, LS, OMRON, GE, Mitsubishi)
- Real-time control for UT head and probe.
- Real-time monitoring for UT machine.

컨텐츠게시판
NO	Category	Contents	Description
1	Lion Solution [H/W]	Channel	Max 128 Ch
2		PRF	MAX 25 Khz
3		Frequency	0.5 Mhz ~ 60Mhz
4		Energy	Max 350 V
5		Damping	500 ohms or 50 ohms
6		Pulse width	20ns to 1000ns, adjustable
7		Filter	Low Pass, High Pass. Band Pass, FIR Filter
8		Receiver Gain	0 to 100dB (Dynamic Range)
9		Wave Form	Full, Half or RF wave
10		Display	HD Display (Full Muti-touch)
11		Interface	Gigabit Ethernet, RS232, RS485
12		Channel	Max 128 Ch
13		Probe	Single, Dual, Immersion, Angle
14		CPU Architecture	Innovative ARM + FPGA Architecture
15	Lion Solution [S/W]	Software	Lion 6
16		OS	Win7, 8, 10 (32bit/64bit)
17		Main Function	A-Scan Multi A-Scan Auto Inspection Auto Calibration Smart Report Safety Smart Login

Inquiry: From inquiry to Service & Verification are processing with our best technical engineer.
we offer customized NDT products for your factory(or plant)
For 2 months, We can help you how to operate and how to use completely for NDT system at the field
